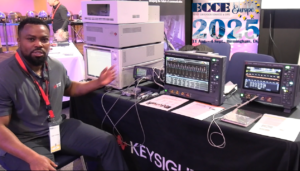

In this video, an engineer explains Keysight’s Semiconductor Teaching Lab, which helps educators quickly prepare graduates for tasks in the semiconductor sector.
The B1506A Power Device Analyzer / Curve Tracer for Circuit Design lets you evaluate all power device parameters across a wide range of operating conditions to improve power circuit design performance. It is a complete solution that can help power electronic circuit designers select the correct power devices for their applications. It can evaluate all relevant device parameters under a wide range of operating conditions, including IV parameters such as breakdown voltage and on-resistance, as well as three-terminal FET capacitances, gate charge, and power loss. The B1506A Power Device Analyzer/Curve Tracer for Circuit Design meets and exceeds all curve tracer capabilities.
The B2912C Precision Source/Measure Unit is a two-channel, 10 fA-resolution, 210 V, 3 A DC/10.5 A pulse device that accurately sources and measures voltage and current without requiring multiple instruments, thanks to its 4-quadrant capabilities. The B2912C features a 4.3-inch color display for graphical or numerical measurements and includes PC control software for remote operation, as well as SCPI command support for seamless integration with conventional SMU setups, ensuring high throughput for efficient testing.
